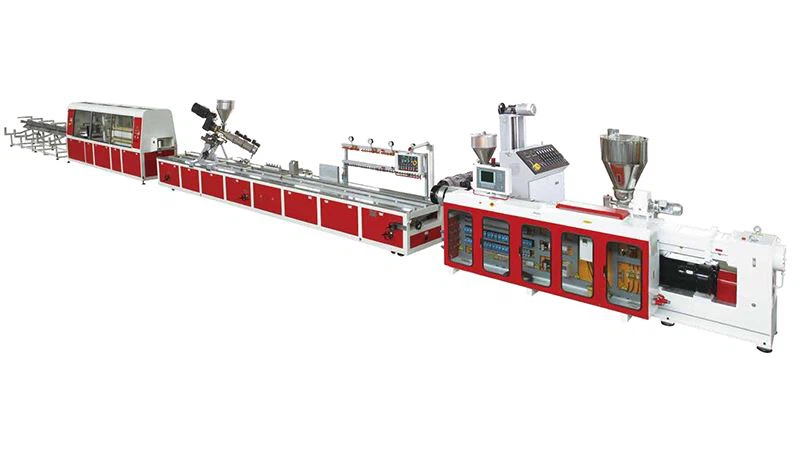

PVC High Speed Profile Extrusion Line



JWELL PVC window  profile extrusion line is JWELL mature production line well received by clients in global market. Apart from the standardized version, there is also a Turkey standard version available. Specially designed for Turkey market and countries around Turkey. Both versions are stable in plasticization, with high output, low sheering force, long life service and other advantages.

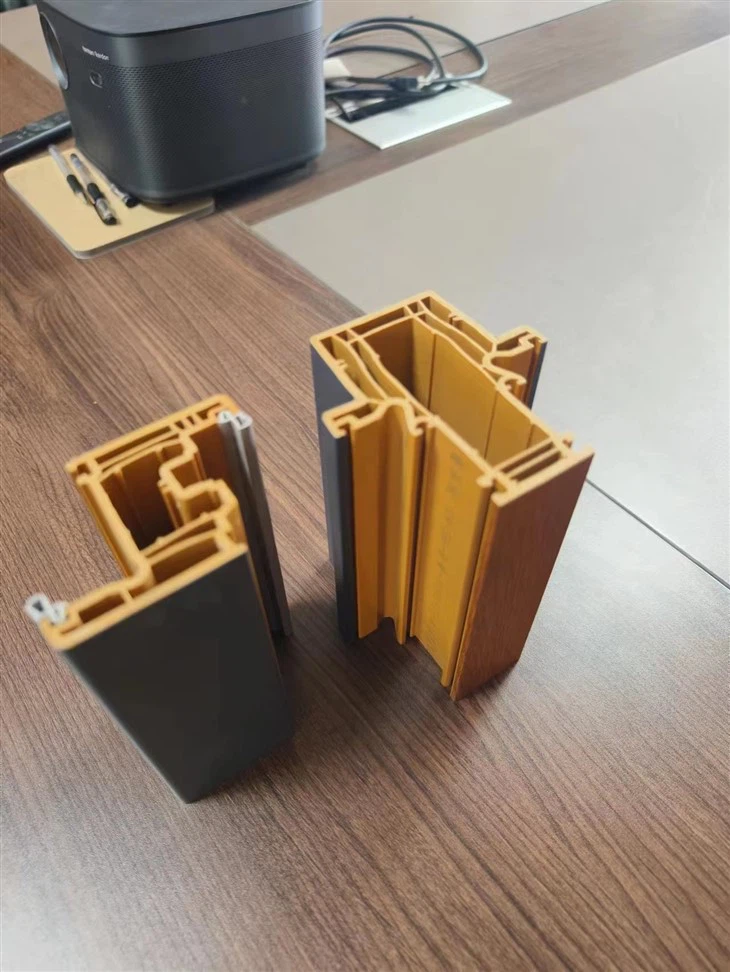

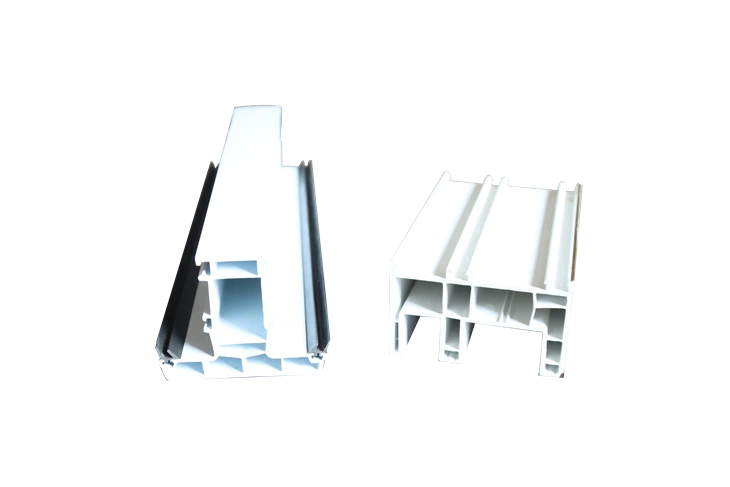

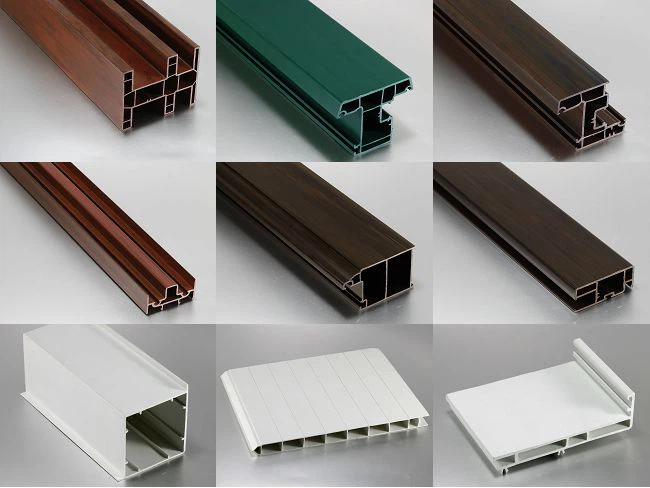

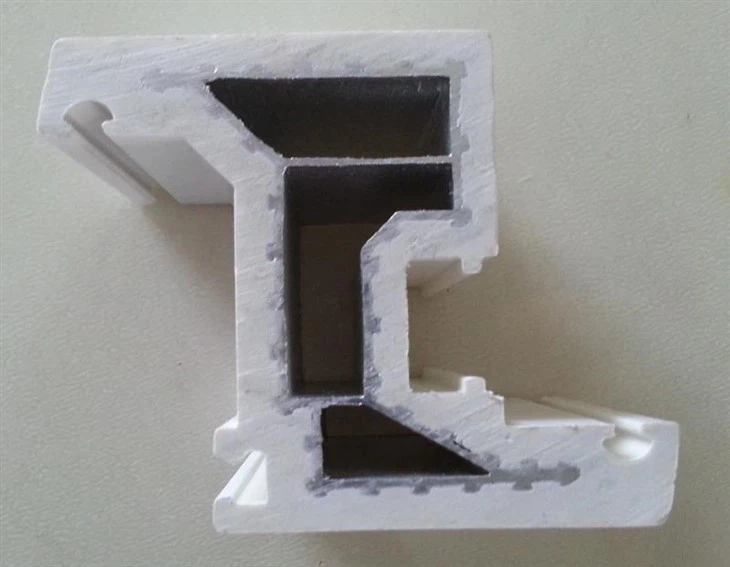

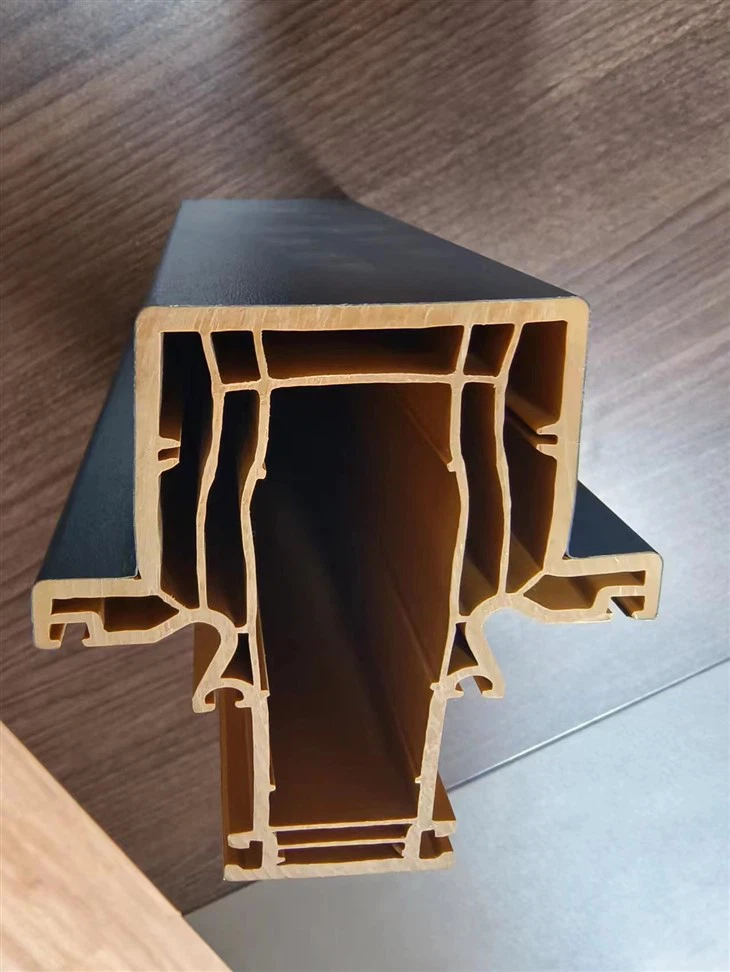

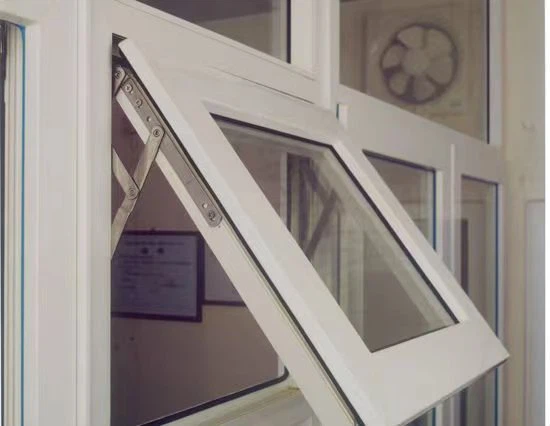

Window profiles, which are called plastic steel profiles in China (the steel lining needs to be stuffed inside when used). The most common window profiles are 60 series, and 80 series. The whole set of molds is divided into dozens of types, so the customer must provide the product drawings, because there are 3 types of models involved, one is to produce the main frame by 65 extruder ,and small products such as layering and cover plates produced by 51 or 45 extruders. A few clients produce foamed window profiles with built-in aluminum alloys. There is also needs for sealing strips co-extruding machine (usually single-screw extruders).





JWELL Turkey version of PVC profile line:

● Adopts some of the European standard to meet Turkey clients' common preference,

● Higher quality standard than normal profile line, slightly lower than European standard.

● Originally meet Turkey clients preference, now popular in countries like Egypt, Algeria, Tunisia, Morocco, India.

● Special design includes: upgrade gearbox, power connector type, longer calibration (8 meters), haul off and cutter,etc.

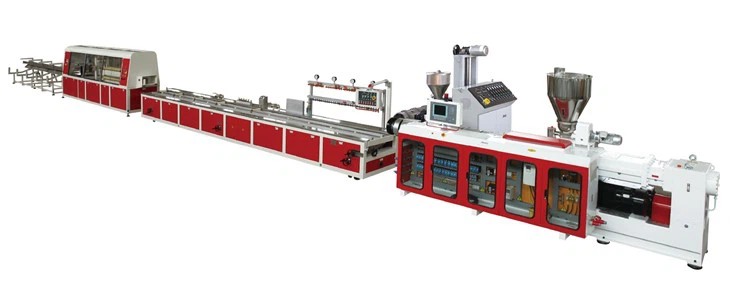

JWELL PVC profile production line consists of control system, conical twin screw extruder or parallel twin screw extruder, calibration unit,haul off unit, film covering machine and stacker. The extruder is equipped with AC variable frequency or DC speed drive, imported temperature controller. The calibration unit's pump and haul off unit's reducer are famous brand products. After simple changing of the die and screw and barrel, it also can produce the foam profiles,the effect can be better than single screw extruder.

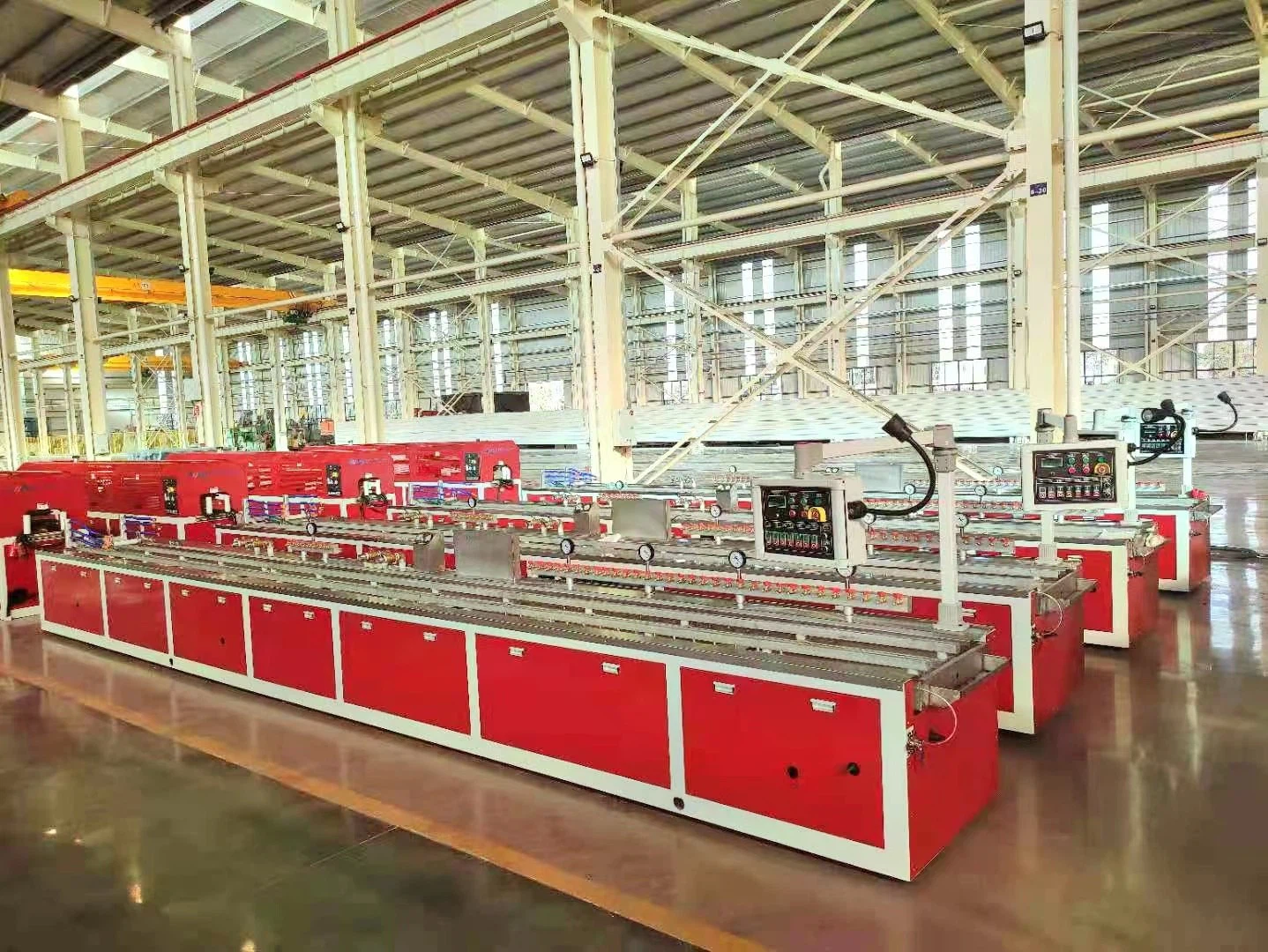

Model	YF240	YF240	YF240A
Max.width of product (mm)	240	240	150*2
Extruder model	SJP75/28	SJP93/28/31	SJP110/28
Max.extrusion capacity (kg/h)	150-250	250-400	400-500
Extruder power (kw)	37	55	75
Cooling water (m3/h)	7	8	10
Compressor air (m3/min)	0.6	0.6	0.8



Core process of JWELL pvc window door profile Line:

SJZ65/132 Conical twin screw extruder→Calibration table→ haul-off unit & Saw cutter→Stacker

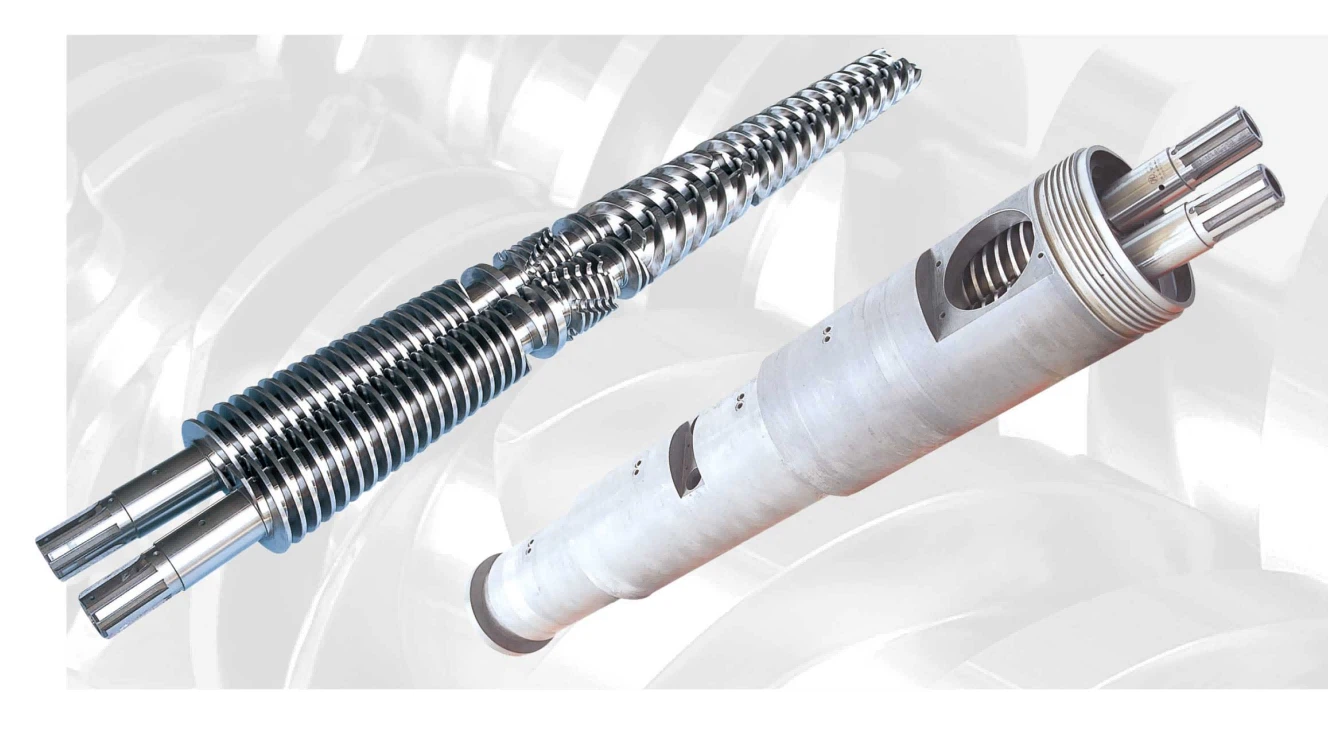

Screw and Barrel	Main extruder	Calibration table

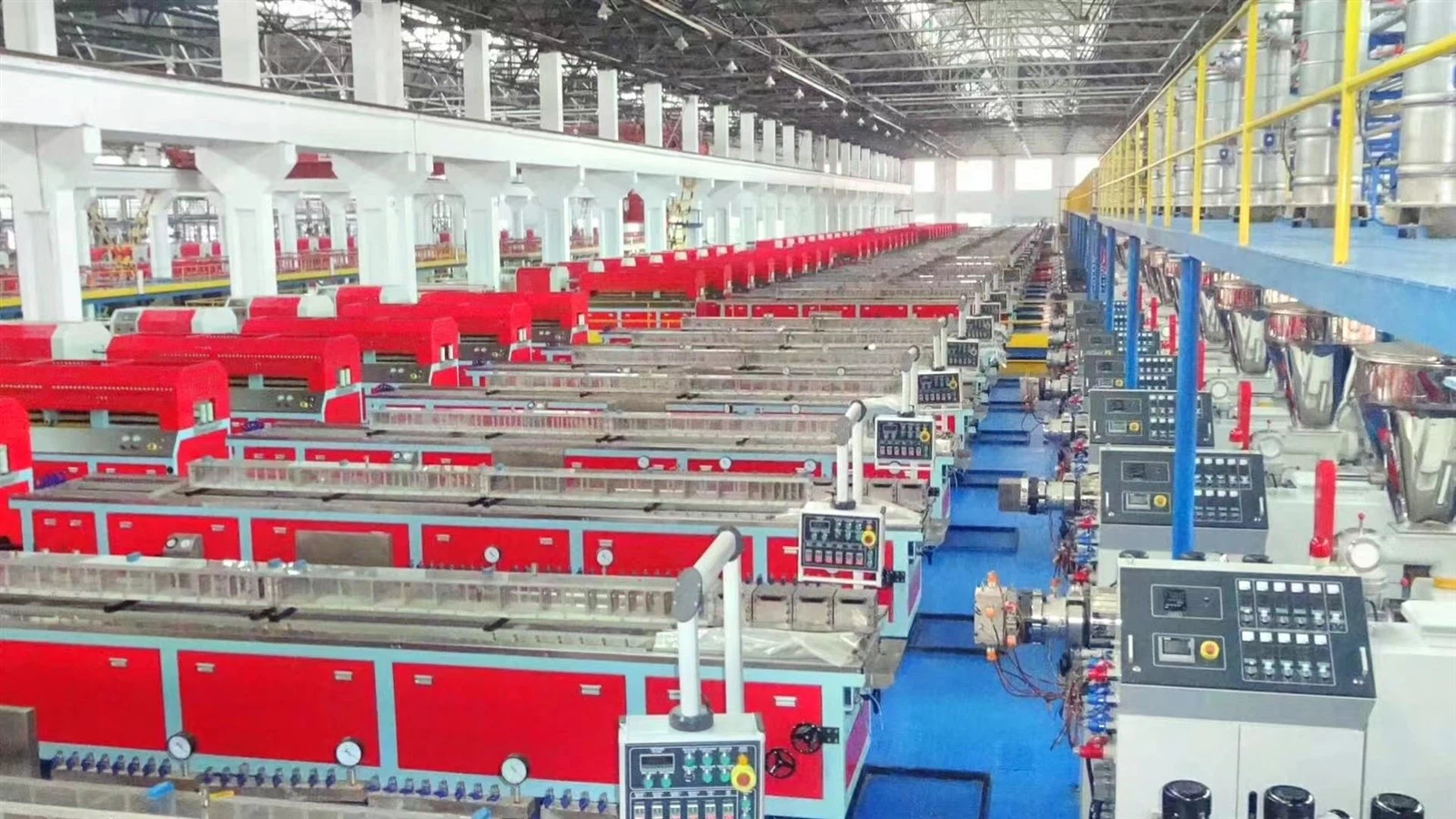

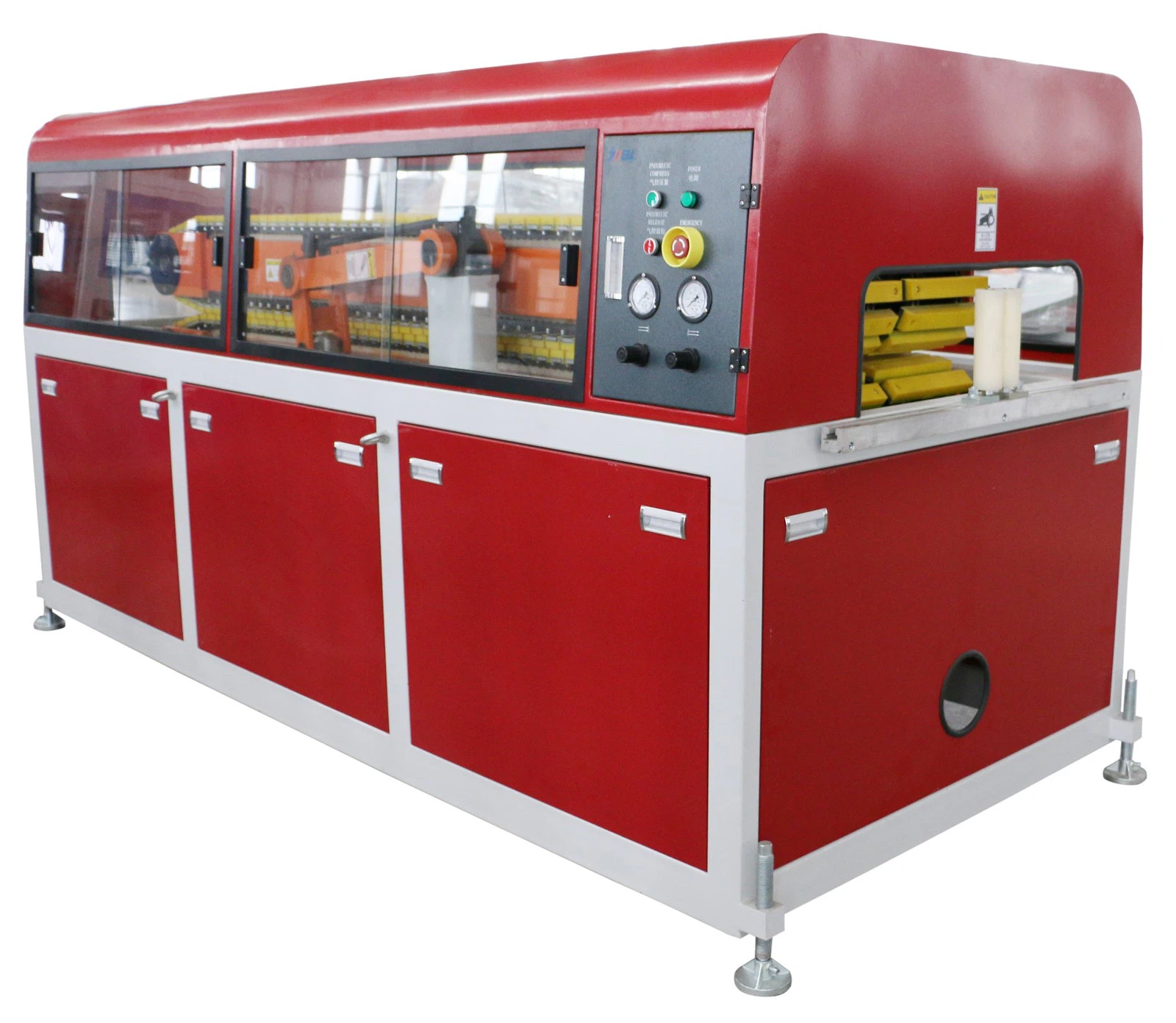

Haul off unit with cutter	Haul-off machine	Client factory





Please provide the following information when inquire

1.Product sectional photo or drawing

2.List exact percentage of CaCO3 in one unit of raw material.

For example：CaCO3 40kg, Wood 30kg, PVC recycle 100kg, Stabiliser 3kg.

3.Any optional machines needed(may choose from the following list)

__________________________________________________________________________________________________________________



Optional machines avaialbe when buying PVC profile production lines from JWELL:

1) Loader

2)  Mixer

3) Upgrade Gearbox (verticle type)

4) Molds

5) Crusher

6) Pulverizer (miller)

7) Film covering device(Only Windows profiles are standard,others no need this device)

8) List of profile processing machines.



Optional list of plastic profile processing machines:

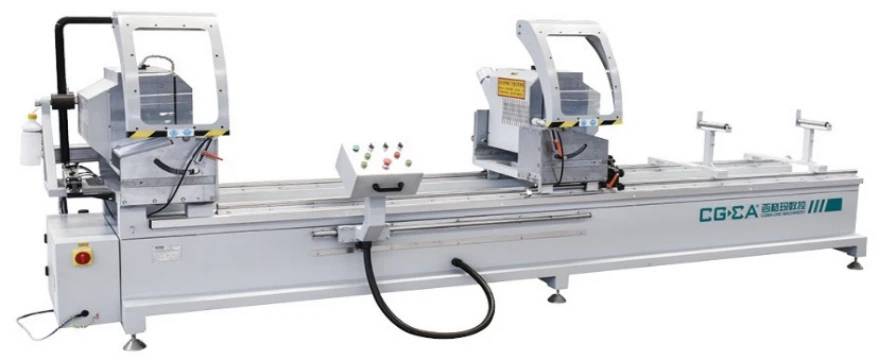

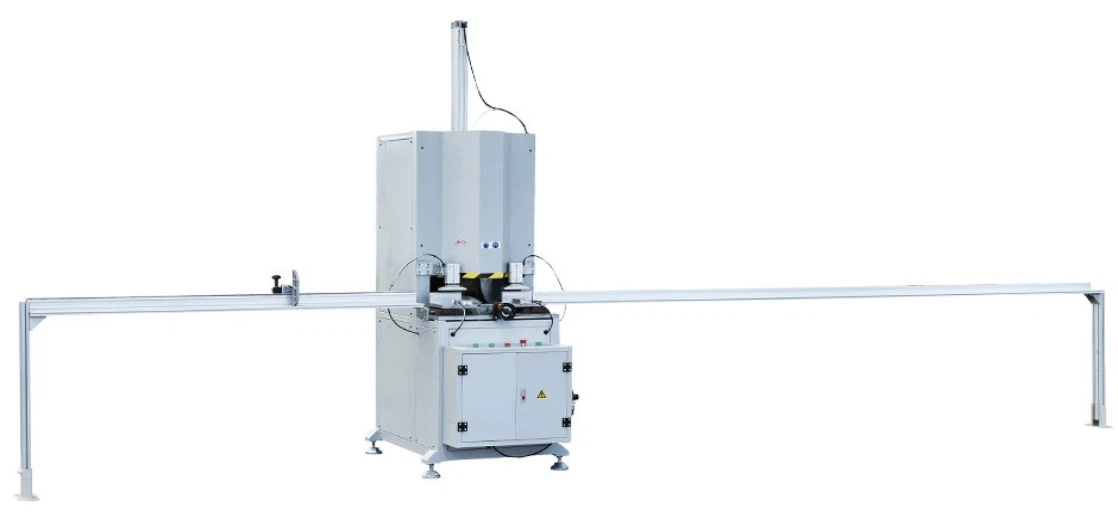

1.Double head cutting saw machine for plastic profile (1.Can cut 45 degrees, 90 degrees, angle pneumatic swing angle; 2.standard vacuum cleaner)





2.Plastic profile vertical mullion cutting sawing machine(1. The cutter cuts vertically to the surface of the profile from top to bottom; 2. The wide surface of the profile is placed on the workbench, and the cutting is stable; 3. High cutting efficiency: the cutting efficiency is 1.5 times that of the horizontal mullion saw)





3.Plastic profile V-cut sawing machine(Cut V-shaped mouth, one-time molding)





4.Plastic door and window glass bead cutting sawing machine(Glass bead cutting and chamfering)





5.Plastic door and window keyhole groove processing machine(Milling handle holes and hardware mounting holes)





6.Plastic Profile Sink Milling Machine(1. Milling drainage holes and air pressure balance holes; 2. Adopt German Bosch)





7.Four-point welding machine for plastic doors and windows (For welding of plastic profiles)





8.CNC corner seam cleaning machine for plastic doors and windows(Two-axis three-knife structure)





JWELL PVC window profile extrusion line running video
